HEX NYLON NUTS DIN982 Self-locking Nuts with Nonmetallic Insert UNI 7473 Size M3~M56

Shanghai E-SOON Enterprise Co.,Ltd
Contact Now

HEX NYLON NUTS DIN982 Self-locking Nuts with Nonmetallic Insert UNI 7473 Size M3~M56

  • 1
  • 2

Brand Name : ESOON

Model Number : DIN982,UNI 7473

Certification : SGS,CNAS

Place of Origin : CHINA

MOQ : 1000PCS

Price : USD$1000~2000/TON

Payment Terms : TT,LC

Supply Ability : 300 Tons/Months

Delivery Time : 15~25 DAYS & 7 DAYS standard size

Packaging Details : Standard export packing or According to customer's requirement

SIZE : M3~M56

GRADE : 8.8 Class

Surface : Zinc Plated

Material : Carbon Steel

Contact Now

DIN982 Nylon Lock NutS

ISO 7040; CSN 21492; UNI 7473

A locknut, also known as a lock nut, locking nut, prevailing torque nut,stiff nut or elastic stop nut, is a nut that resists loosening under vibrations and torque. Elastic stop nuts and prevailing torque nuts are of the particular type where some portion of the nut deforms elastically to provide a locking action.

WE CAN SUPPLY SMALL QUANTITY AS TRIAL ORDER.

FEATURE:

1. FREE SAMPLES

2. NON-STANDARD ITEM CAN BE CUSTOMIZED

3. STANDARD SIZE ETA 7 DAYS!

HEX NYLON NUTS DIN982 Self-locking Nuts with Nonmetallic Insert UNI 7473 Size M3~M56

d s e m min m1 min h
M3 5.5 6.01 2.4 1.65 4
M4 7 7.66 2.9 2.2 5
M5 8 8.79 3.2 2.75 5
M6 10 11.05 4 3.3 6
M8 13 14.38 5.5 4.4 8
M10 17 18.9 6.5 5.5 10
M12 19 21.1 8 6.6 12
M14 22 24.49 9.5 7.7 14
M16 24 26.75 10.5 8.8 16
M18 27 29.56 13 9.9 18.5
M20 30 32.95 14 11 20
M24 36 39.55 15 13.2 24

PRODUCTS DESCRIPTION:
Grade 4,6,8,10,12 CLASS
Size M3-M56
Standard DIN982
Finish PLAIN,ZP,BLACK,HDG,Dacromet,GEOMET,etc.
Material Carbon Steel,Alloy Steel
Packing Standard export packing or According to customer's requirement
Delivery time regular product is about 5-20days, custom product will according to special requirement

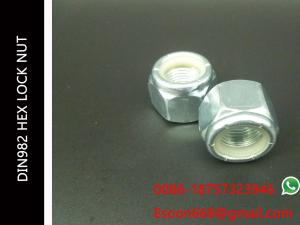

IMAGE DETAIL(Nylon Lock Nuts)

HEX NYLON NUTS DIN982 Self-locking Nuts with Nonmetallic Insert UNI 7473 Size M3~M56

HEX NYLON NUTS DIN982 Self-locking Nuts with Nonmetallic Insert UNI 7473 Size M3~M56

PACKING DETAILS:(BULK,BOX,BAG,ETC)

HEX NYLON NUTS DIN982 Self-locking Nuts with Nonmetallic Insert UNI 7473 Size M3~M56HEX NYLON NUTS DIN982 Self-locking Nuts with Nonmetallic Insert UNI 7473 Size M3~M56
